| Ore-smelting Furnace Series >> Directly-cooled Type Red Copper Forging Brasses >> Directly-cooled type red copper forging brasses |
|
 |
| |
|
|
Number: |
yc-0018 |
Name: |
Directly-cooled type red copper forging brasses |
Spec: |
|
Memo: |
|
Class: |
Ore-smelting Furnace Series |
| |
|
|

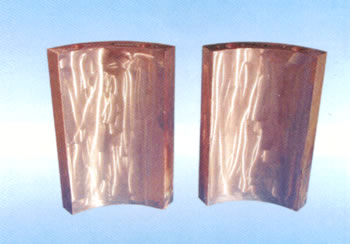

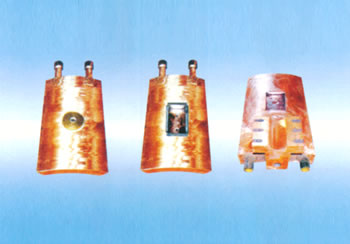

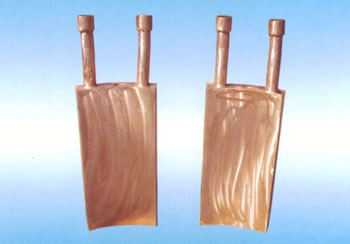

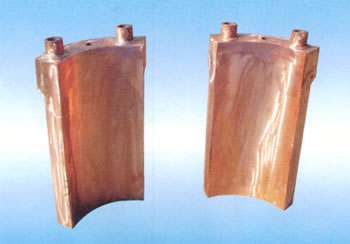

Provide energy saving brasses for ore-smelting furnace according to user’S drawings．
Directly—cooled trpe red copper foring brasses was a new product for use with ore-smelting furnace developed in 1 998，now this product formed a series．
It was press processed using the T2 red copper，SO it's of high density．Cooling water tunnel is gun dirlled with deep hole driller to achieve good conductivity and cooling performance，and SO reducing the power loss in the brasses，for longer working life。
|
|
|
|
| |
| Performance parameter |
| 型 號 |
導電率%★ |
電阻率Ω.mm2/m |
導電率W/m.k |
抗拉強度N/mm2 |
硬度HB |
|
ZQSn6-6-3 |
11.5 |
0.15 |
92.1 |
195 |
65 |
|
ZH96 |
56 |
0.031 |
245 |
235 |
63.7 |
|
T2(鍛造) |
100 |
0.0175 |
390 |
240★★ |
54.3 |
|
注：★以T2銅導電率為100% ★★退火狀態 | |
| |

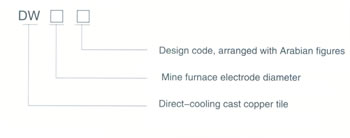

| Model |
 |
| |
| Direct-cooling cast copper tile technical parameters |
|
型 號 |
電極直徑 |
每相電極上的件數 |
允許最大電極電流 |
基本外型尺寸
厚×寬×高 |
|
DW-500-□ |
500 |
4 |
25 |
50×340×600 |
|
DW-600-□ |
600 |
4 |
34 |
55×400×700 |
|
DW-700-□ |
700 |
6 |
45 |
55×340×700 |
|
DW-800-□ |
800 |
6 |
54 |
60×380×800 |
|
DW-900-□ |
900 |
8 |
62 |
60×320×850 |
|
DW-1000-□ |
1000 |
8 |
75 |
65×360×900 |
|
DW-1100-□ |
1100 |
8 |
83 |
65×440×900 |
|
DW-1200-□ |
1200 |
8 |
91 |
65×440×900 |
|
注：特殊規格按供需雙方協議進行 | | |
|
